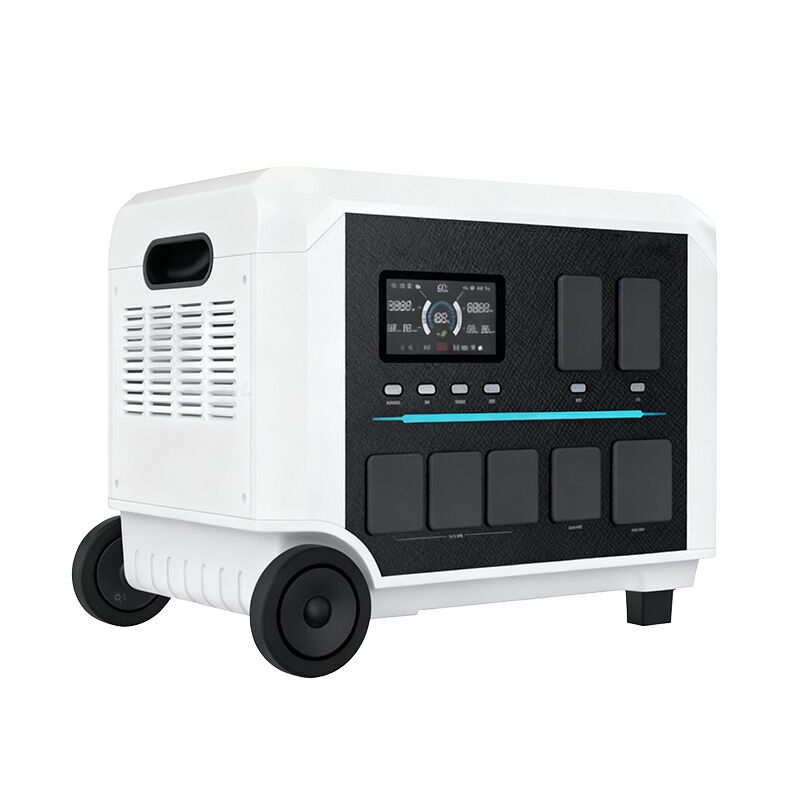

3.6 kW Portable Power Station, 50/60 Hz, 3072 Wh, 120-400 V

Home Products Portable Power Station 3.6 kW Portable Power Station, 50/60 Hz, 3072 Wh, 120-400 V

Key Specifications / Features

The 3.6 kW Portable Power Station is a robust and flexible energy solution, equipped with a 3072 Wh LiFePO₄ battery that ensures reliable and long-lasting power. It supports multiple output sockets and offers compatibility with various voltage configurations, including 120 V / 240 V and 230 V / 400 V, making it suitable for a wide range of devices. The power station operates at both 50 Hz and 60 Hz frequencies, enhancing its versatility. Additionally, it features WiFi and APP control.

Model No.: DAEVC-20250929-PPS-02
Hits: 0
Categories: Portable Power Station
Tags: 3.6 kW Portable Power Station

Request a quote

Detail Information

Product Name: 3.6 kW Portable Power Station
Frequency: 50 Hz / 60 Hz
Battery Cell: LiFePO₄
Capacity: 3072 Wh (host) / 5120 Wh (expansion pack)
AC Output Power: 3600 W (Peak 7200 W)
EV Charging: 3600 W
RV Output: 360 W
DC Output: 2 × 5521 ports & car lighter, 120 W
USB-A: 4 × 18 W
USB-C: 2 × 100 W
Wireless Charging: 10 W
US/JP: 120 V / 240 V
EU/AU: 230 V / 400 V (Three-phase)
UPS Switching Time: 10 ms
Connectivity: Optional WiFi / APP (custom development)

Charging Methods

AC Charging: JP 1500 W / US 1800 W / EU & AU 2200 W
Solar Charging (MPPT): 2,400 W
Car Charging: 192 W

Protection & Safety

Charge protection: high/low temperature, over-voltage, over-current
Discharge protection: high/low temperature, under-voltage, over-current
Input protection: over-voltage, overload, reverse protection
Output protection: overload, short-circuit protection
