Key Specifications / Features
Our China AC EV Charging Cable Factory produces robust 5-meter charging cables designed for AC EV chargers. These cables comply with the IEC 62196-2 (Type 2) standard, ensuring compatibility with a wide range of electric vehicles. They support single-phase power at 50/60 Hz, with a voltage range of 110–240 V AC and current ratings of 16 A or 32 A. The cables are built with IP67 protection, providing excellent resistance to dust and water, making them highly durable and suitable for various environments.
- Model No.: DAEVC-20250929-EVCC-04
- Hits: 18
- Categories: EV Charging Cable
- Tags: AC Charging Cable, Type 2 Charging Cable, Electric Vehicle Charging Cable
Detail Information

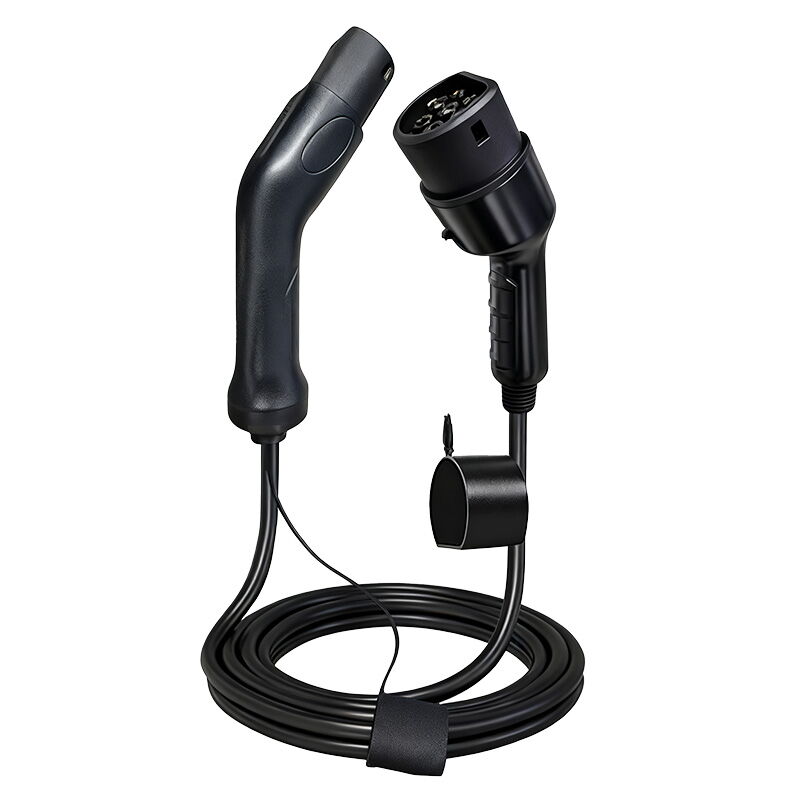

Product Name: AC EV Charging Cable
Interface Standard: IEC 62196-2 (Type 2)
Frequency: 50/60 Hz
Phase: Single Phase
Input/Output Voltage: 110–240 V AC
Current: 16 A / 32 A
Power: 3.5 / 3.84 / 7 / 7.4 / 9.6 / 11 / 11.5 / 22 kW
Cable Length: 5 Meters
Waterproof Rating: IP67
Applications: AC Home Charging, EV Charger Pile Usage
Mechanical & Safety Features
Mechanical Life: No-load plug in/out >10,000 times
Enclosure: Plastic PC5V
Operating Temperature: -30°C to +55°C
