Key Specifications / Features

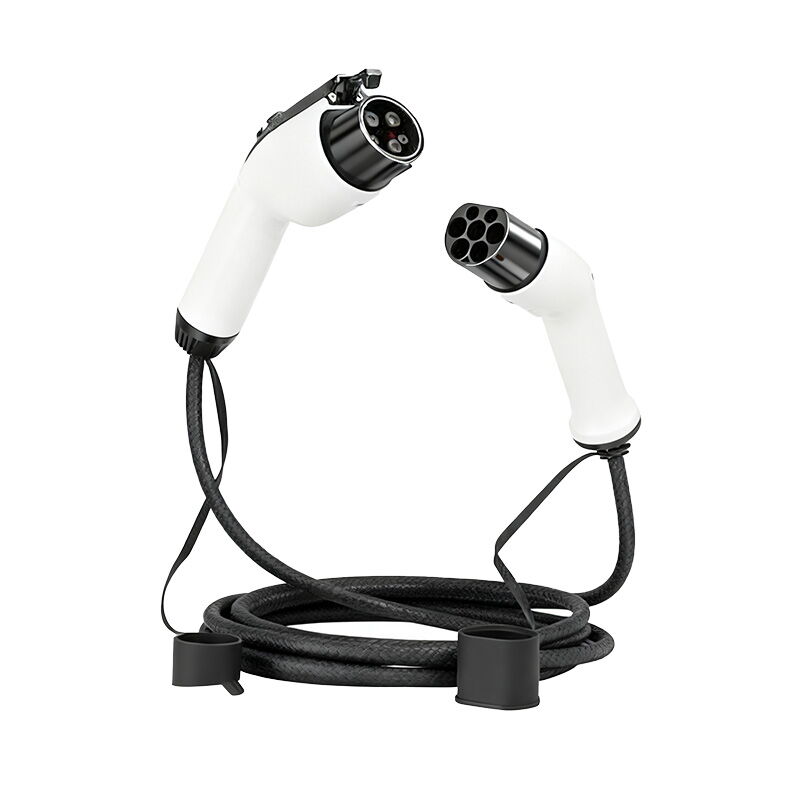

The IEC 62196-2 EV Charging Cable Supplier offers a high-quality solution for electric vehicle charging. This cable is designed with a 5-meter length, providing flexibility and convenience for users. It features a Type 1 to Type 2 connector, ensuring compatibility with a wide range of EVs. The cable supports a current rating of 16 A or 32 A and operates at AC 230/380 V, making it suitable for various charging scenarios. Certified to the SAE J1772 standard, this cable ensures safe and efficient charging, making it a reliable choice for EV owners.
- Model No.: DAEVC-20250929-EVCC-01
- Hits: 1
- Categories: EV Charging Cable
- Tags: IEC 62196-2 Charging Cable, 32 A Charging Cable, 16 A Charging Cable
Detail Information
Product Name: IEC 62196-2 EV Charging Cable
Charging Standard: IEC 62196-2, SAE J1772
Connector Type: Type 1 to Type 2
Current: 16 A / 32 A
Voltage: AC 230 V / 380 V
Cable Length: 5 Meter (standard)
Cable Form: Straight / Coiled (optional)
Plug Material: ABS + PC Alloy
Cable Material: TPE / TPU
Protection Degree: IP54
Withstand Voltage: 2000 V
Operating Temperature: -25°C to +55°C
Insulation Resistance: >1000 MΩ
Service Life: >10,000 mating cycles
