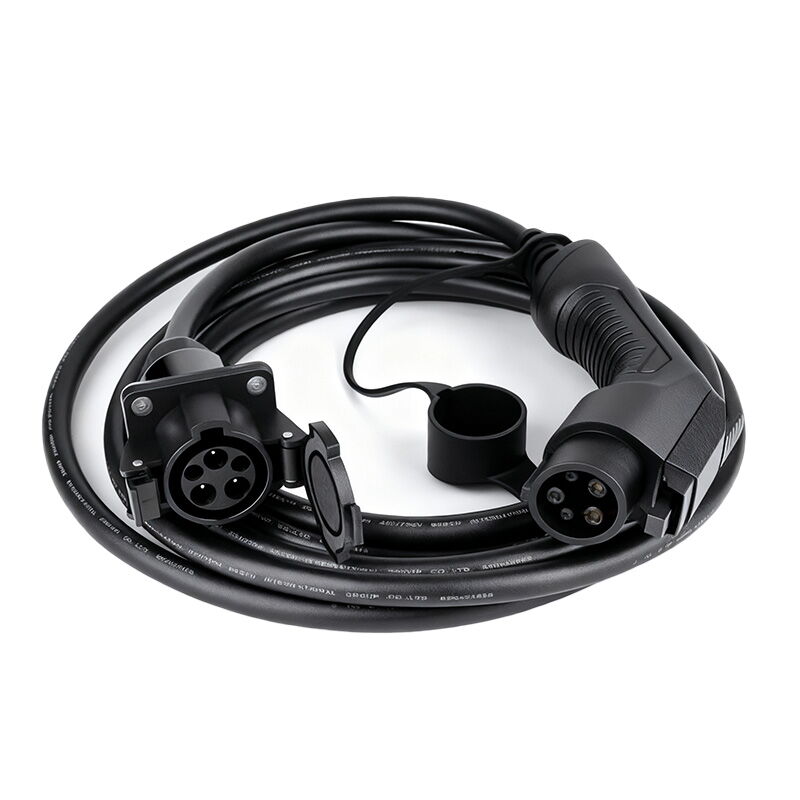

Type 1 EV Charger Cable, SAE J1772, 3.5/7 kW, 16/32 A, IP67

Home Products EV Charging Cable Type 1 EV Charger Cable, SAE J1772, 3.5/7 kW, 16/32 A, IP67

Key Specifications / Features

The IEC 62196-2 EV Charging Cable Supplier offers a high-quality solution for electric vehicle charging. This cable is designed with a 5-meter length, providing flexibility and convenience for users. It features a Type 1 to Type 2 connector, ensuring compatibility with a wide range of EVs. The cable supports a current rating of 16 A or 32 A and operates at AC 230/380 V, making it suitable for various charging scenarios. Certified to the SAE J1772 standard, this cable ensures safe and efficient charging, making it a reliable choice for EV owners.

Model No.: DAEVC-20250929-EVCC-02
Hits: 0
Categories: EV Charging Cable
Tags: Type 1 Charging Cable, SAE J1772 Charging Cable, Electric Vehicle Charging Cable

Request a quote

Detail Information

Product Name: Type 1 to Type 1 EV Charger Cable
Output Current: 16 A / 32 A
Output Power: 3.5 kW / 7 kW
Rated Voltage: AC 110 V / 220 V (Single Phase)
Interface Standard: Type 1 (SAE J1772)
Application Standard: IEC 62196 Type 2 / SAE J1772 Type 1
Withstand Voltage: 2000 V
Contact Impedance: ≤0.5 mΩ
Waterproof Rating: IP67
Certifications: CE, RoHS, TUV, ISO, PSE, CARB, RCM, SAA, UKCA, UL, FCC

Mechanical Properties

Mechanical Life: >10,000 plug-in / pull-out cycles (no load)
Cable Length: 5 m / 6 m / 10 m (customizable)
Cable Material: TPU (CE / TUV certified) / TPE optional
Impact Resistance: Withstands 1 m drop or 2-ton vehicle run-over pressure

Operating Protection

Overcurrent protection
Overvoltage protection
Undervoltage protection
Leakage protection
Overheating protection
