Key Specifications / Features

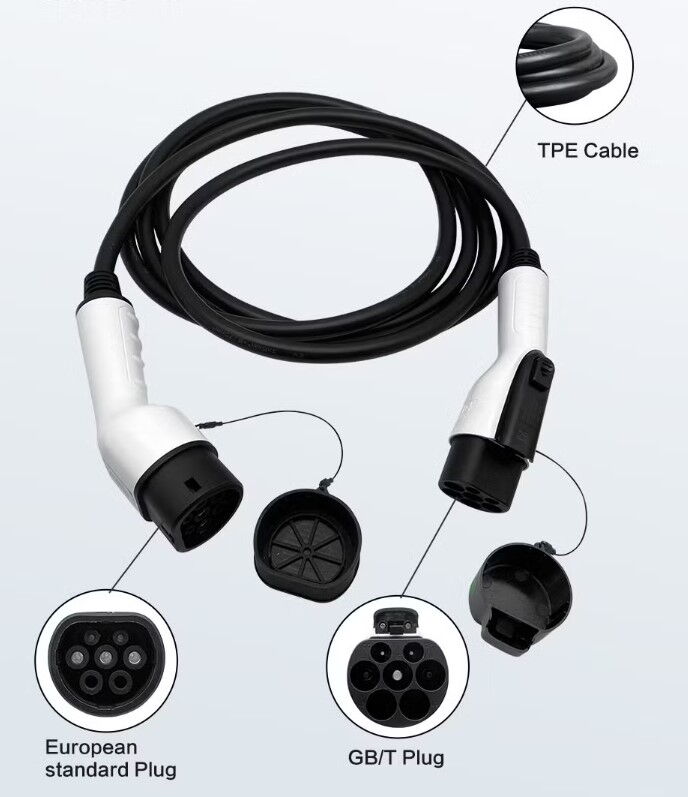

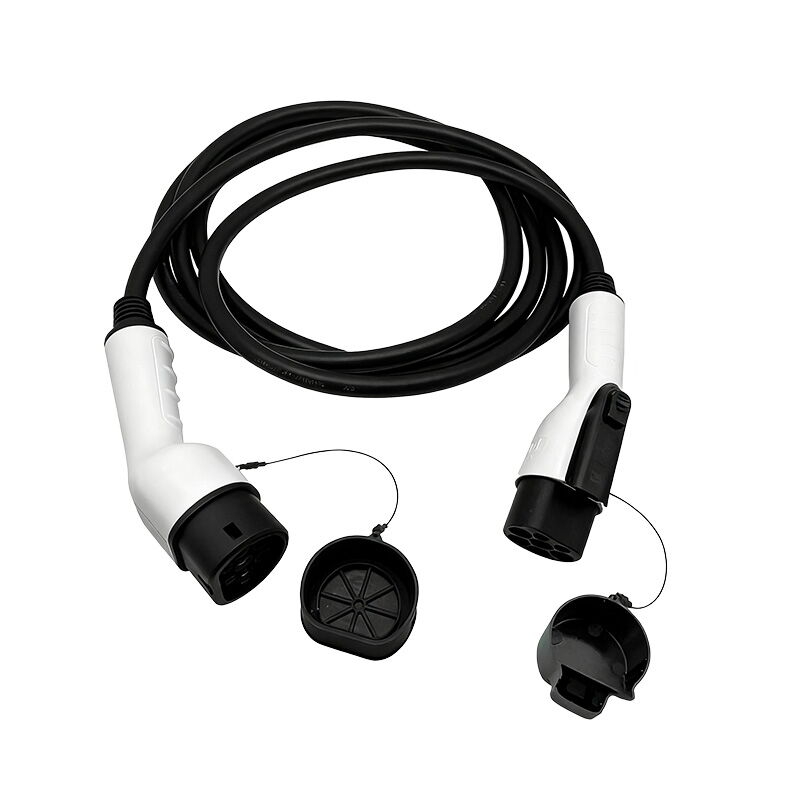

The Single Phase EV Charging Cable Supplier offers a high-quality, 5-meter charging cable designed for electric vehicles. This cable features a Type 2 plug on one end and a GB/T plug on the other, ensuring compatibility with a wide range of EVs. It supports a maximum current of 32A and operates at 230V AC, providing fast and efficient charging. The cable is built to the IEC 62196-2 standard, ensuring safety and reliability.
- Model No.: DAEVC-20250925-EVCC-01
- Hits: 5
- Categories: EV Charging Cable
- Tags: Electric Vehicle Charging Cable, Single Phase Charging Cable, 32 A Charging Cable
Detail Information
Product Name: Single Phase EV Charging Cable
Standard: IEC 62196-2
Charging Interface: Type 2 to GB/T Plug
Cable Length: 5 Meters (customizable)
Rated Current: 32 A
Rated Voltage: 230 V AC
Terminal Temperature Rise: <50K
Standby Power Consumption: <8W
Material & Construction:
Shell Material: Thermoplastic
Contact Pins: Copper Alloy
Cable Material: TPU
IP Protection Grade: IP55 (Cable), IP54 (Connector)
Operating Temperature: -25°C to +55°C
