Key Specifications / Features

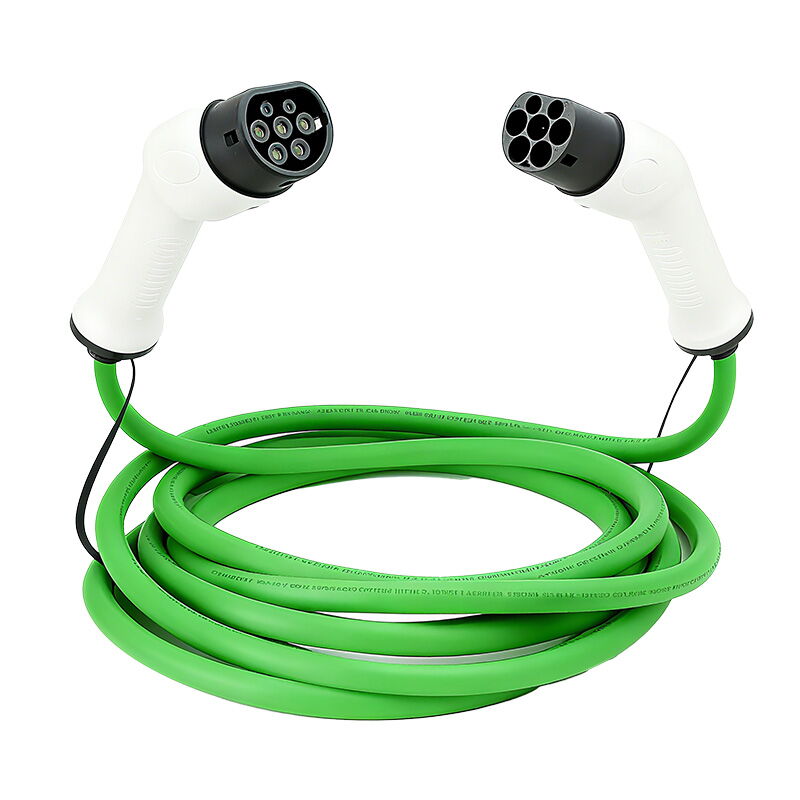

The Three Phase EV Charging Cable is a high-performance solution for electric car charging. This 5-meter cable supports a powerful 32 A current and a 480 V voltage, enabling faster charging times. It features Type 2 to Type 2 connectors and complies with the IEC 62196-2 standard. The cable is designed with durability in mind, offering IP55 protection, while the connectors are rated IP54, safeguarding against dust and water ingress.
- Model No.: DAEVC-20250928-EVCC-02
- Hits: 0
- Categories: EV Charging Cable
- Tags: Electric Vehicle Charging Cable, 32 A Charging Cable, Three Phase Charging Cable
Detail Information
Product Name: Three Phase EV Charging Cable
Standard: IEC 62196-2
Connector Type: Type 2 to Type 2
Rated Current: 32 A
Operating Voltage: 480 V
Length: 5 Meters (Custom)
Withstand Voltage: 2000 V
IP Protection Grade: IP55 (Cable), IP54 (Connector)
Terminal Material: Copper Alloy, Silver Plated
Case Material: Thermoplastic
Operating Temperature: -30°C to +50°C
Mechanical Life: >10,000 No-Load Plug In/Out Cycles
Coupled Insertion Force: 45 N – 100 N
Impact Resistance: Can withstand 1 m drop
