Key Specifications / Features

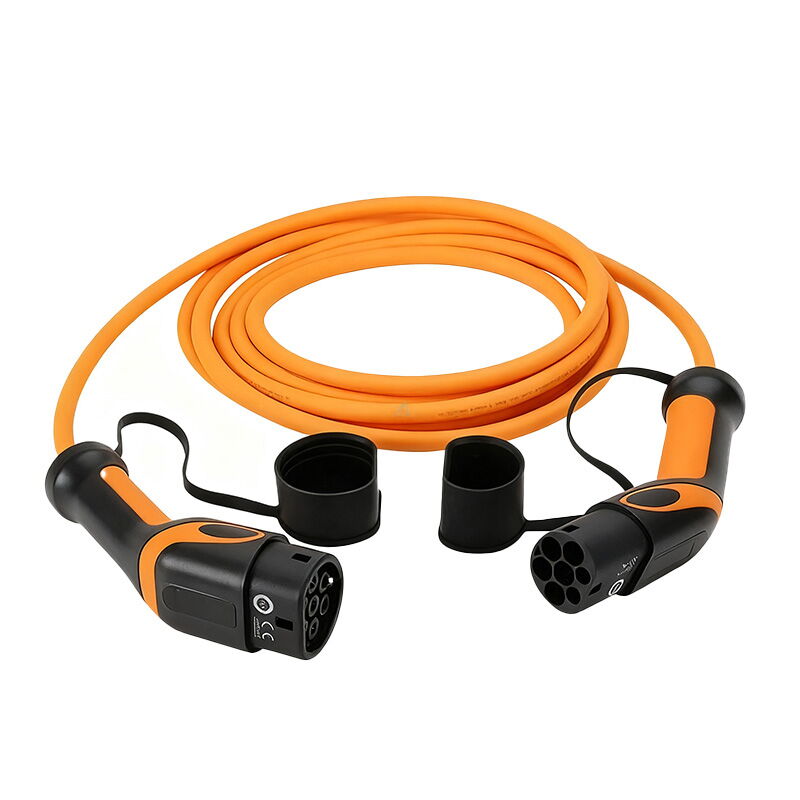

The 16 A EV Charging Cable is a reliable solution for single-phase electric vehicle charging. This 5-meter cable features a 250 V rating and Type 2 to Type 2 connectors, adhering to the IEC 62196-2 standard. It offers robust durability with an IP55-rated cable and IP54-rated connectors, ensuring protection against dust and water ingress. This cable is designed to provide efficient and safe charging for electric vehicles, making it a practical choice for both home and commercial use.
- Model No.: DAEVC-20250928-EVCC-01
- Hits: 0
- Categories: EV Charging Cable
- Tags: Electric Vehicle Charging Cable, Single Phase Charging Cable, 16 A Charging Cable
Detail Information
Product Name: EV Charging Cable, Single Phase
Standard: IEC 62196-2
Connector Type: Type 2 to Type 2
Length: 5 Meters (customizable)
Rated Current: 16 A
Operating Voltage: 250 V
Insulation Resistance: ≥500 MΩ (DC 500 V)
Contact Resistance: ≤0.5 mΩ
Terminal Temperature Rise: <50 K
Withstand Voltage: 2000 V
Operating Temperature: -30°C to +50°C
IP Protection Grade: IP55 (Cable), IP54 (Connector)
Case Material: Thermoplastic, Flame Retardant Grade UL94 V-0
Terminal Material: Copper Alloy, Silver Plating
Mechanical Properties
Mechanical Life: >10,000 No-Load Plug In/Out Cycles
Coupled Insertion Force: 45 N – 100 N
Impact Resistance: Can withstand 1 m drop
