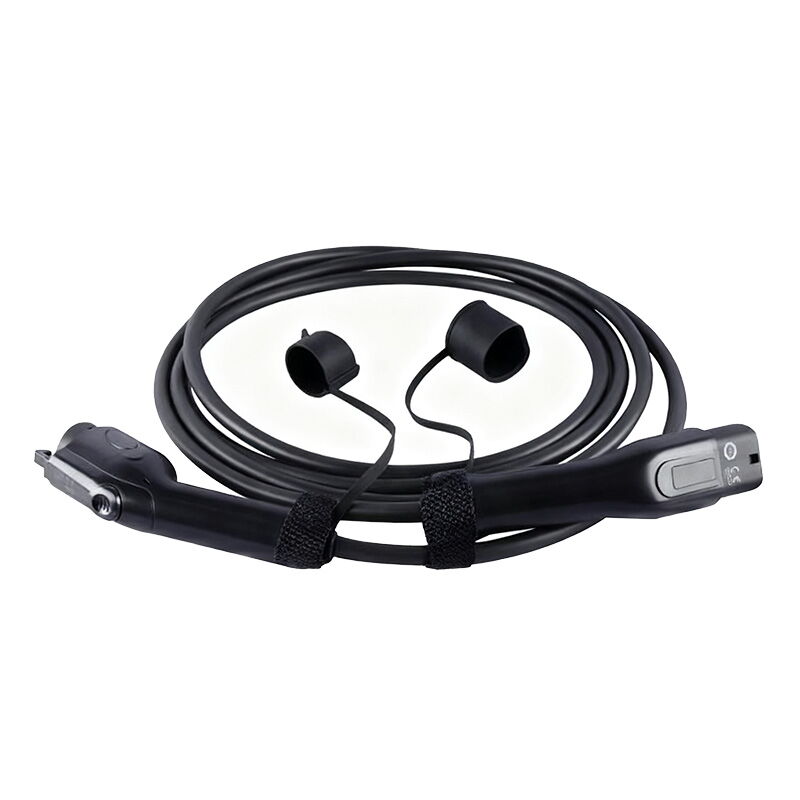

Type 2 EV Charging Cable, IEC 62196-2, Three Phase, 16 A, 5M

Home Products EV Charging Cable Type 2 EV Charging Cable, IEC 62196-2, Three Phase, 16 A, 5M

Key Specifications / Features

The Type 2 EV Charging Cable is a high-quality solution for electric vehicle charging. Compliant with the IEC 62196-2 standard, this cable features a three-phase connection with a current capacity of 16 A and a voltage rating of 480 V. It comes with Type 2 connectors on both ends, ensuring compatibility with most modern EV charging stations and vehicles. The 5-meter cable length provides ample flexibility for convenient charging in various settings. This durable and reliable charging cable is essential for efficient and safe EV charging.

Model No.: DAEVC-20250928-EVCC-03
Hits: 0
Categories: EV Charging Cable
Tags: Three Phase Charging Cable, 16 A Charging Cable, Electric Vehicle Charging Cable

Request a quote

Detail Information

Product Name: Type 2 EV Charging Cable, Three Phase
Standard: IEC 62196-2
Connector Type: Type 2 to Type 2
Standard Length: 5m, Customized
Rated Current: 16 A
Operating Voltage: 480 V
Case Material: Thermoplastic, UL94 V-0 flame retardant
Terminals: Copper alloy, silver plated
Maximum Charging Speed: 3.6 kW per hour
Insulation Resistance: >500MΩ (DC500V)
Contact Resistance: ≤0.5mΩ
Terminal Temperature Rise: <50K
Withstand Voltage: 2000V
Certification: CE, ISO, TUV, RoHS
Operating Temperature: -30°C to +50°C

Mechanical Properties

Mechanical Life: >10,000 plug in/out cycles (no-load)
Coupled Insertion Force: 45–100N
Drop Resistance: Can withstand 1m drop

Features

Easy to use: Plug and charge at home, work, or anywhere
Safe: Earthing detection and automatic protection
Intelligent Charging: Detects and corrects voltage, current, frequency, earth leakage, and temperature issues, including during lightning or electrical storms
