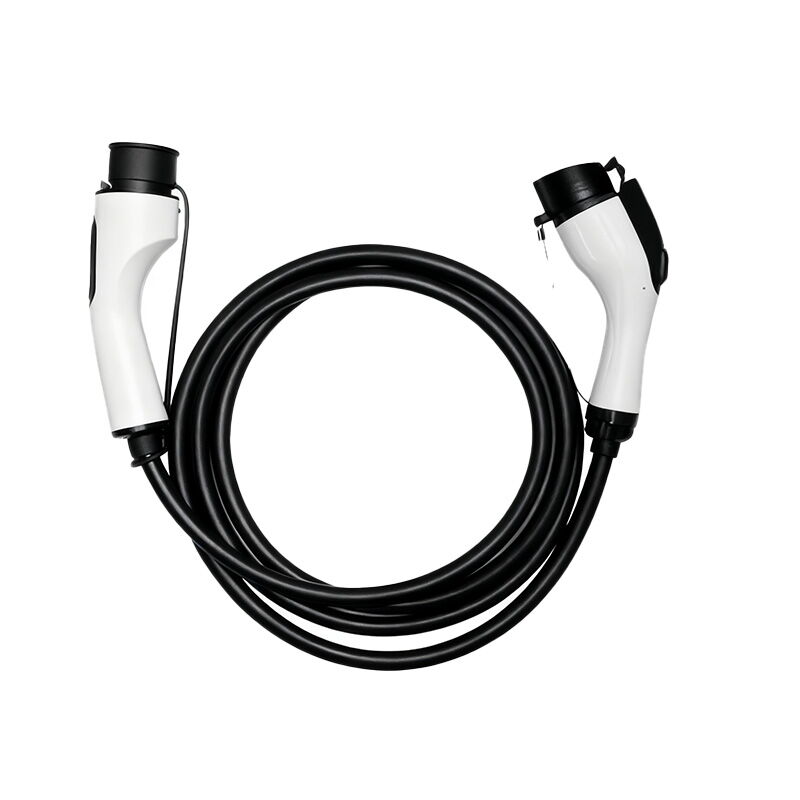

OEM EV Charging Cable, 250 V/480 V, 16/32 A, GB/T to Type 1

Product Name: OEM EV Charging Cable
Output Power: 7 kW
Input Voltage: 220 V / 380 V (AC)
Rated Output Voltage: 250 V / 480 V
Rated Current: 16 A / 32 A
Interface Standard: GB/T to Type 1
Charge Connector: Type 1 Plug
Insulation Resistance: >1000 MΩ (DC 500 V)
Terminal Temperature Rise: <50 K
Withstand Voltage: 2000 V
Contact Resistance: ≤0.5 mΩ
Coupled Insertion Force: >45 N and <80 N
Complies with: IEC 61851-1:2010 Mode 3 & B2, EN 62196-2:2017, EN 62196-1:2014
Features: IP55 protection, fire-retardant, pressure resistance, abrasion resistance, and impact resistance

Mechanical Properties

Mechanical Life: >10,000 plug in / pull out cycles (no load)
Impact Resistance: Qualifies for 1 m drop or withstands 2-ton vehicle run-over
Shell Material: Thermoplastic PC (white/black standard, fire-retardant 94 V-0, custom colors optional)
Cable Material: TPU jacket (black standard, custom colors optional)
Connector Material: Copper alloy with nickel bottom plating and 3 μm silver surface plating

Environmental Properties

IP Protection: IP55 (Enclosure)
Fire Retardant Level: UL94 V-0
Operating Temperature: -30°C to +50°C
