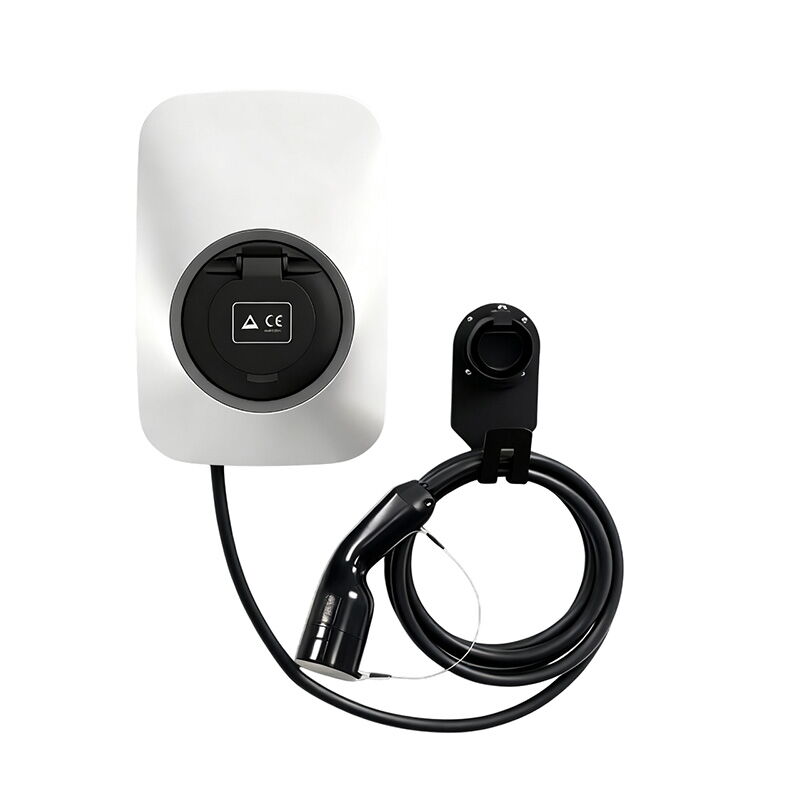

Wall-Mounted AC EV Charger, 7 kW, 230 V, 32 A, IEC 61851-22

Home Products AC EV Charger Wall-Mounted AC EV Charger, 7 kW, 230 V, 32 A, IEC 61851-22

Key Specifications / Features

The Wall-Mounted AC EV Charger Factory offers a robust and efficient 7 kW AC charger designed for convenient and reliable electric vehicle charging. It features an IEC 62196 Type-2 outlet, compatible with a wide range of EVs. Operating on a 230 V supply at 32 A, this charger ensures fast and efficient power delivery. With an IP54 rating, it is protected against dust and water ingress, making it suitable for both indoor and outdoor use. The charger adheres to the IEC 61851-22 standard, ensuring safe and compliant charging operations.

Model No.: DAEVC-20250925-ACEV-03
Hits: 0
Categories: AC EV Charger
Tags: AC EV Charger, Wall-Mounted EV Charger, 7 kW EV Charger

Request a quote

Detail Information

Product Name: Wall-Mounted AC EV Charger
Type: AC Charger, Wall-Mounted
Charging Type: Mode 3
Enclosure Protection Grade: IP54
Cable Routing: Bottom or Top Inlet Wiring
Charging Standard: IEC 61851-22
Dimensions: 244 * 164 * 126.5 mm (H x W x D)

Input

Input Voltage: 230 V AC ±10%, 50/60 Hz, 1-Phase + Neutral + PE
Power Factor: 0.99 at Nominal Output
RCCB: Type-A + 6 mA DC

Output

Output Power: 7 kW Max
Outlet Type: IEC 62196 Type-2
Output Voltage Range: 230 V
Output Current Range: 32 A Max
Charging Outlet: Socket with Electrical Lock

User Interface

User Authentication: Website Interface
Display: LED Indicator
Interface Languages: English (Other Languages Upon Request)
Network Interface: Wi-Fi, Bluetooth

Environmental

Working Temperature: -25°C to +55°C
Working Humidity: 5% to 95% Non-Condensing
Cooling: Natural Cooling

Protection: Over/Under Voltage Protection, Overload Protection, Current Leakage Protection, Grounding Protection, Lightning Surge Protection
