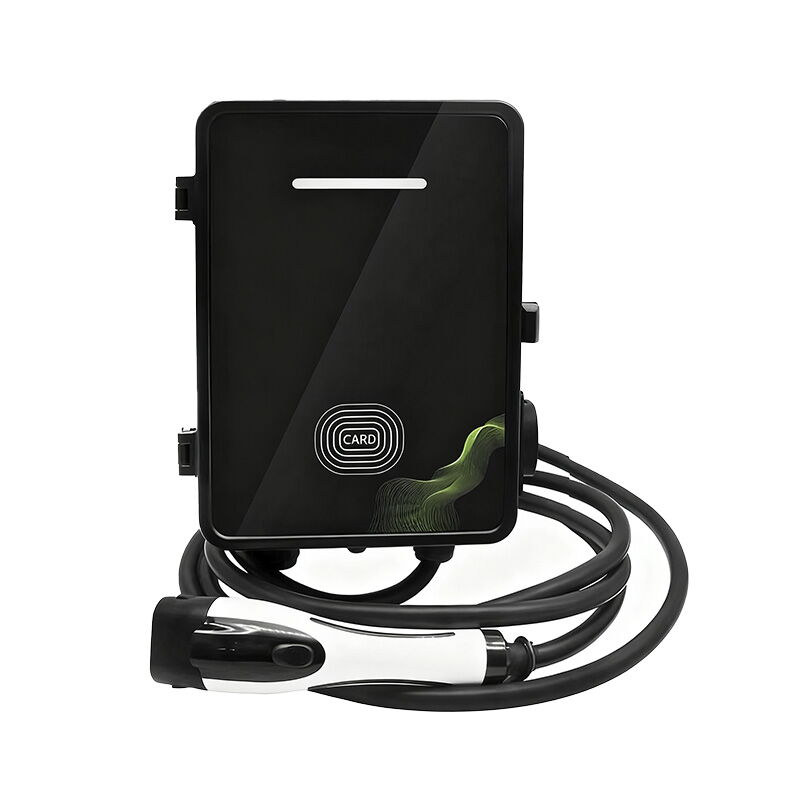

11 kW AC EV Charging Station, 380 V, 16 A, IP55, Wall-Mounted

Home Products AC EV Charger 11 kW AC EV Charging Station, 380 V, 16 A, IP55, Wall-Mounted

Key Specifications / Features

The 11 kW AC EV Charging Station is a robust and efficient solution for electric vehicle charging. It features an aluminum alloy body, offering durability and a sleek appearance. The wall-mounted design ensures easy installation and space efficiency. Operating at AC 380 V and 16 A, it delivers a powerful 11 kW output for fast and reliable charging. Equipped with OCPP 1.6, it ensures seamless communication and compatibility with various charging networks. Available with Type 2 or GB/T connectors, it caters to a broad range of EV models. Its IP55 protection rating safeguards against dust and water ingress, making it suitable for both indoor and outdoor use.

Model No.: DAEVC-20250926-ACEV-02
Hits: 0
Categories: AC EV Charger
Tags: AC EV Charger, 11 kW EV Charger, Electric Vehicle Charging Station

Request a quote

Detail Information

Product Name: 11 kW AC EV Charging Station
Type: Wall-Mounted (or Floor-Standing)
Material: Aluminum Alloy
Charging Method: Normal Charge
Charging Power: 11 kW
Charging Cable: 5 m Standard (7.5 m / 10 m or Custom Length Available)
Connector Type: Type 2 or GB/T
Certification: CCC, CE, TUV
Dimensions: 350 * 240 * 95 mm (H * W * D)

Electrical Specifications

Input Voltage: AC 380 V ±10%
Frequency Rating: 45–65 Hz
Output Voltage: AC 380 V ±10%
Output Current: 16 A

Functions

Indicator Light: Yes
Display: 4.3 Inch Screen (Optional)
Communication Interface: Wi-Fi/4G/OCPP 1.6/LAN (Optional)

Operating Conditions

Working Temperature: -40°C to +65°C
Relative Humidity: 5%–95%
IP Grade: IP55 and Higher
Cooling Method: Natural Cooling
Applicable Environment: Indoor / Outdoor
