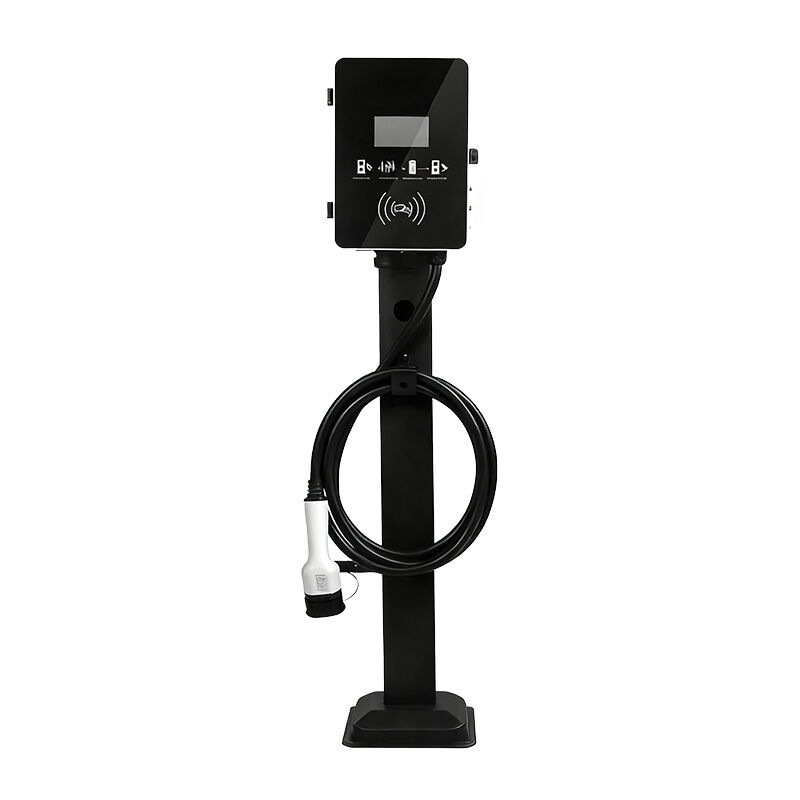

Pedestal AC EV Charger, 22 kW, 380 V, 32 A, Wall-Mounted

Home Products AC EV Charger Pedestal AC EV Charger, 22 kW, 380 V, 32 A, Wall-Mounted

Key Specifications / Features

The 22 kW AC EV Charger is a high-performance charging solution designed for efficient and rapid charging of electric vehicles. It features a durable aluminum alloy body, ensuring both strength and a modern aesthetic. The charger operates at 380 V, 32 A, and 3-phase power, delivering a robust 22 kW output for quick and reliable charging. It is equipped with an IEC 62196-2 Type 2 connector, ensuring compatibility with a wide range of EVs. With an IP66 protection rating, it is highly resistant to dust and water.

Model No.: DAEVC-20250926-ACEV-03
Hits: 0
Categories: AC EV Charger
Tags: Wall-Mounted EV Charger, Pedestal EV Charger, AC EV Charger

Request a quote

Detail Information

Product Name: 22 kW AC EV Charger

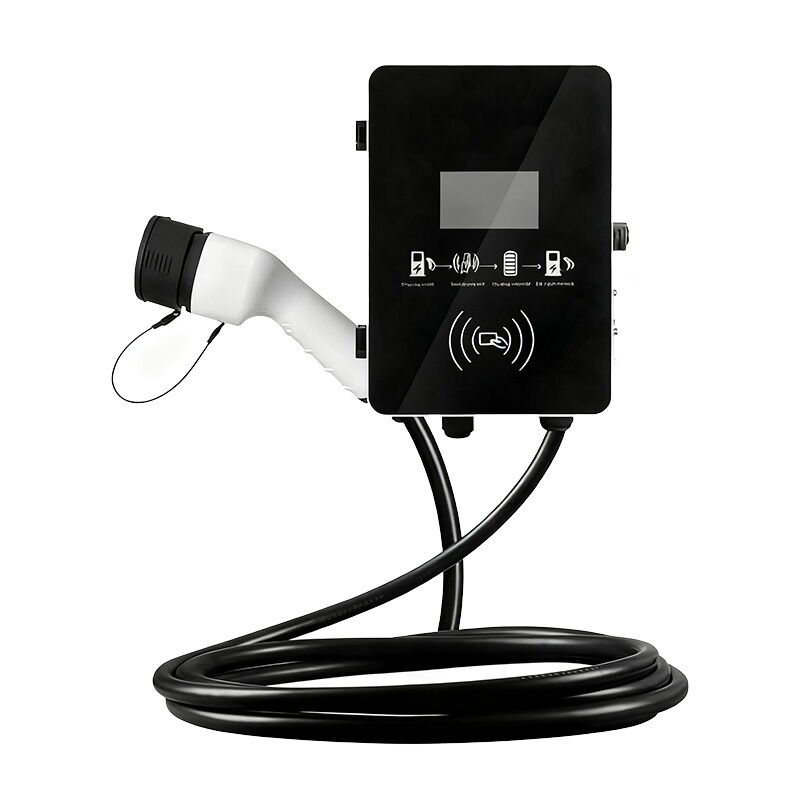

Type: Wall-Mounted/Pedestal
Material: Aluminum Alloy
Charging Power: 22 kW
Charging Method: Normal Charge
Connector Type: Type 2 or GB/T
Certification: CCC, CE, TUV, FCC, ROHS, CSA

Electrical Specifications

Input Voltage: 380 V
Output Voltage: 380 V
Input Frequency: 47–63 Hz
Max. Output Current: 32 A (3 Phase)
Standby Power Consumption: <8 W
Charging Interface Type: IEC 62196-2

Functions & Accessories

Display: 3.5 Inch Color LCD
Indicator Light: Yes
Intelligent Power Adjustment: Yes
RFID: Optional
App Control: Optional
Connectivity: Ethernet/Wi-Fi/4G/Bluetooth

Environmental

Working Temperature: -40°C to +80°C
Relative Humidity: 0–95%
Cooling Method: Natural Air Cooling
IP Grade: IP66
Applicable Environment: Indoor / Outdoor
