Key Specifications / Features

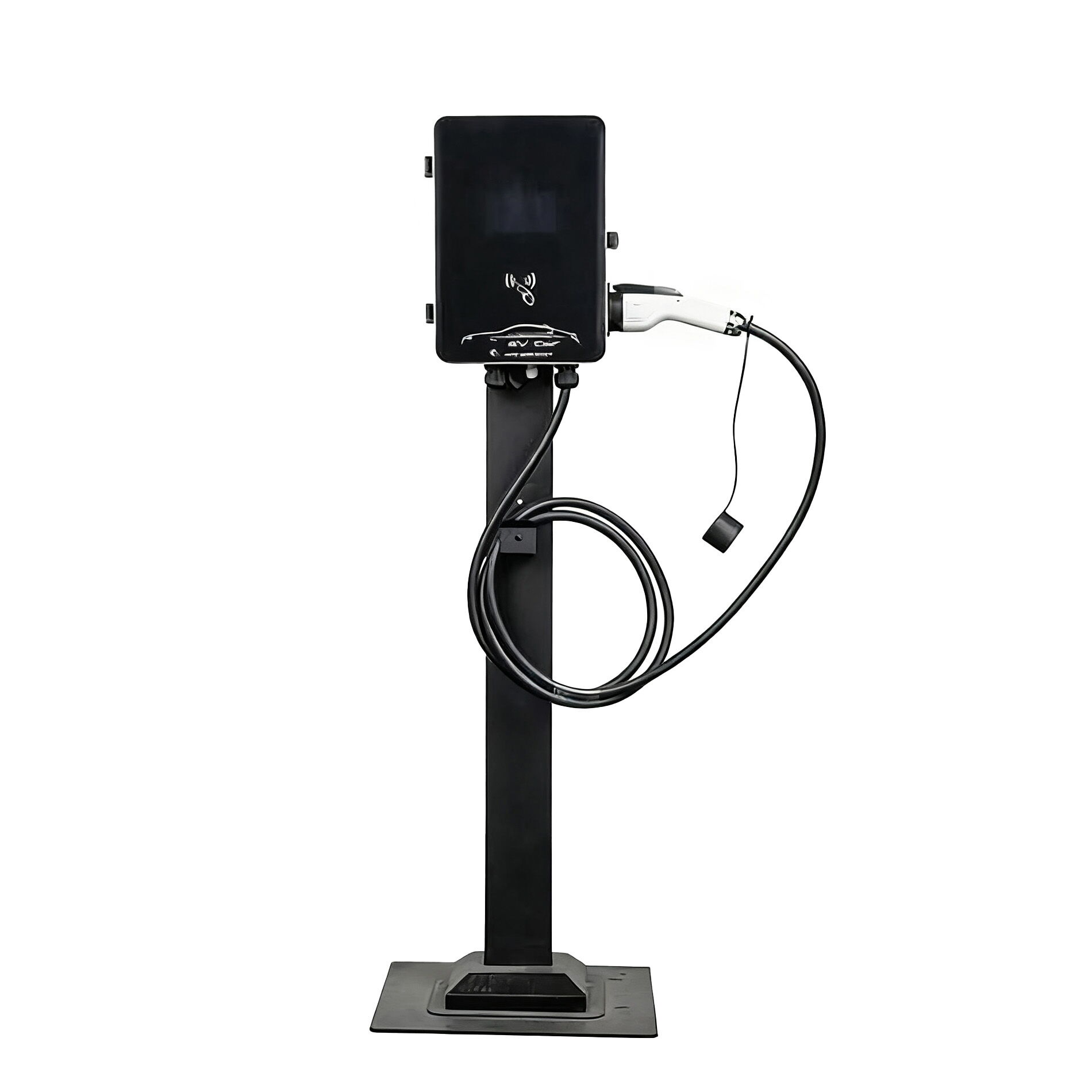

The 14 kW AC EV Charger is a versatile and efficient charging solution for electric vehicles. It operates on a 220 V AC supply with a 32 A current, ensuring fast and reliable charging. The charger features an IP54 rating for dust and water resistance, making it suitable for various environments. It comes with a 3.5-meter single charging cable, providing convenient access for users. Connectivity options include 2G, 4G, and WiFi, enabling seamless monitoring and management. Available in both wall and floor-mounted configurations.
- Model No.: DAEVC-20250925-ACEV-02
- Hits: 1
- Categories: AC EV Charger
- Tags: Single Port EV Charger, 14 kW EV Charger, AC EV Charger
Detail Information
Product Name: AC EV Charging Station, Single Plug/Port
Type: AC Charger
Charging Power: 14 kW
AC Power: 220 V AC ±20%, 50 Hz ±10%
Rated Current: 32 A
Charging Method: Swipe Card/Scan Code
Human-Computer Interaction: 4.3 Inch Touch Screen
Networking Method: 2G/4G/WiFi
Charging Port: GB/T 20234.2-2015
Charging Cable Length: Standard 3.5 m (Optional)
Installation Method: Wall-Mounted or Floor-Mounted (Accessories Required)
Protection Level: IP54
Temperature Range: -20°C to +50°C
Dimensions: 480 * 350 * 120 mm (L * W * H)
Protective Functions: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Surge, Leakage, Etc.
