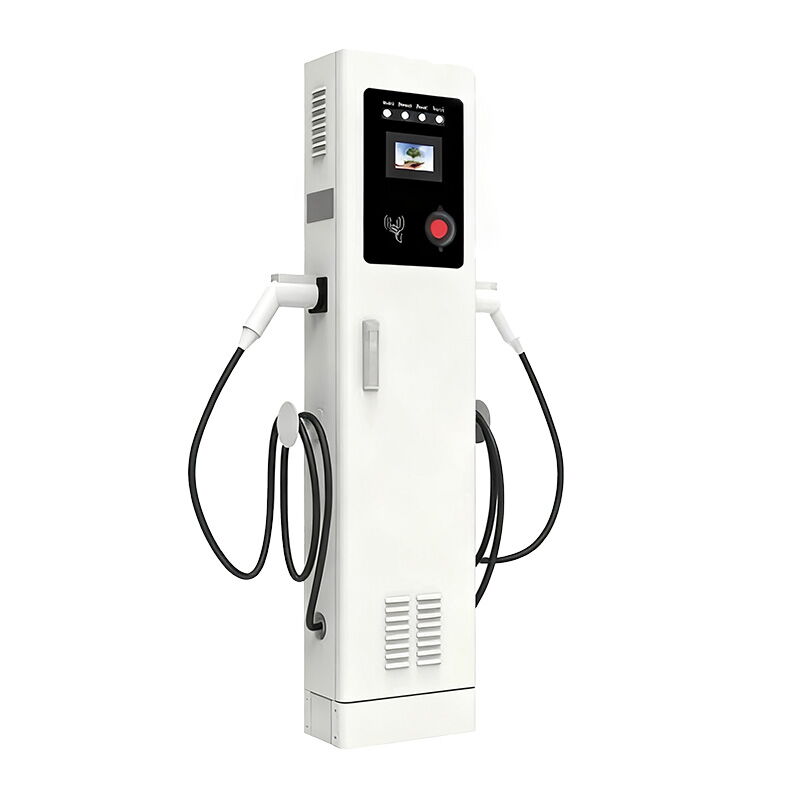

22 kW AC EV Charger, 380-400 V, 32 A, 2 Ports, Floor-Mounted

Product Name: 22 kW AC EV Charger
Type: AC EV Charger, Floor-Mounted
Charging Power: 22 kW
AC Supply System: Three-Phase, 5-Wire AC System
Nominal Input Voltage: 380-400 V AC ± 15%
Input Frequency: 50 Hz ±1.5 Hz / 60 Hz ±1.5 Hz
Number of Outputs: Dual Port
Type of Each Output: 380-400 V AC ± 15%, Three-Phase, 32 A
Output Current: 32 A
Output Connector Compatibility: SAE J1772 Type 1, IEC 62196-2 Mode 3, Type 2
IP Rating: IP54
Cooling: Air Cooled

Environmental Requirements

Ambient Temperature Range: -25°C to +55°C
Ambient Humidity: 5% to 95%

Interface & Display Requirements

Display & Touch-Screen Size: 4.3 Inches
User Authentication: Mobile Application / User Interface / QR Code / RFID Card / Password Login
Metering Information: Consumption Units

Communication Requirements

Communication Protocol: OCPP 1.6J (Optional)
Interface Between Charger and CMS: Ethernet and GPRS Modem

Protection & Safety Requirements

Safety Parameters: Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature
Power Failure Indication: User is alerted in case of power failure
