Key Specifications / Features
The 180 kW DC EV Charger is a high-performance, dual-port fast charging station designed for rapid electric vehicle charging. Floor-mounted and built for durability, it supports a wide voltage range of 150–1000 V and can deliver up to 250 A. With an IP54 rating, it offers protection against dust and water spray, making it suitable for various environments. The charger features OCPP 1.6 JSON compatibility for seamless network integration and is equipped with fan cooling to ensure efficient operation.
- Model No.: DAEVC-20250926-DCEV-02
- Hits: 0
- Categories: DC EV Charger
- Tags: Dual Port EV Charger, DC EV Charger, 45 kW EV Charger
Detail Information

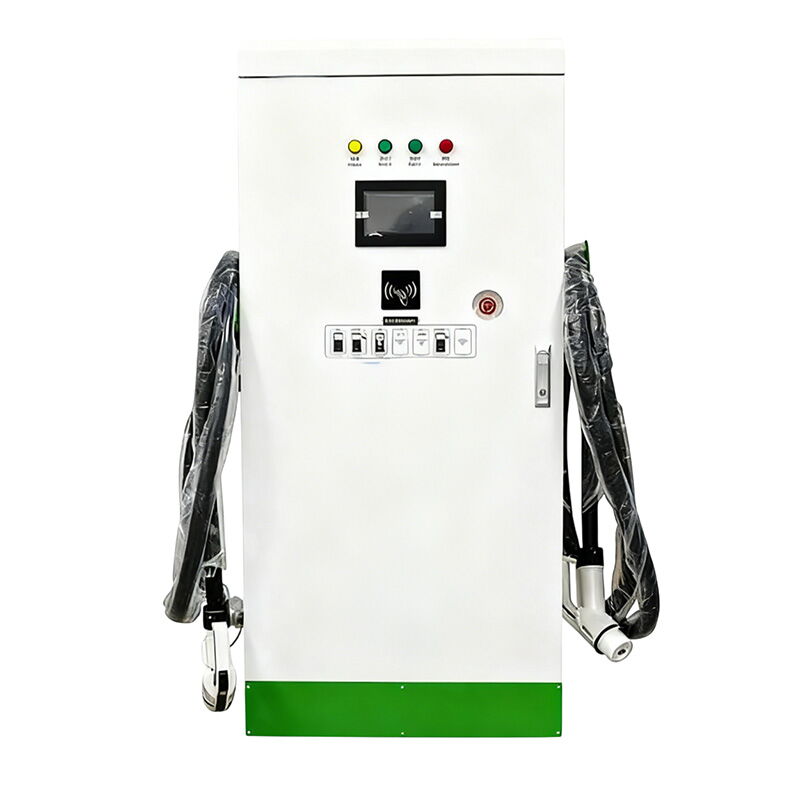

Product Name: Floor-Mounted DC EV Charger, Dual Port
Type: DC Fast Charger, Floor-Mounted
Charging Power: 45 kW
Cable Length: 5 m
Input Voltage: AC 380 V ±20%
Input Frequency: 45–65 Hz
Output Voltage: 200–750 VDC
Output Current Range: Max 90A
Feature Design / HMI
HMI: 7 Inch LCD Color Display Touch Screen, LED Indicator
Charging Mode: Auto Full / Fixed Power / Fixed Amount / Fixed Time
Payment Method: Credit Card / App / Scan Code
Communication Interface: Ethernet / 2G / 3G / 4G (Optional)
Environmental Indicators
Operating Temperature: -25°C to +50°C
Working Humidity: 5%–95% Non-Condensing
Protection Level: IP54
Cooling Method: Forced Air Cooling
Noise Control: Max 60 dB
MTBF: 100,000 Hours
Safety Design
Executive Standard: GB/T 20234, GB/T 18487, GB/T 27930, NB/T 33008
Security Function: Temperature Detection, Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Grounding Protection, Over Temperature Protection, Low Temperature Protection, Insulation Monitoring Protection, Polarity Reverse Connection Protection, Lightning Protection, Emergency Stop Protection, Leakage Protection
