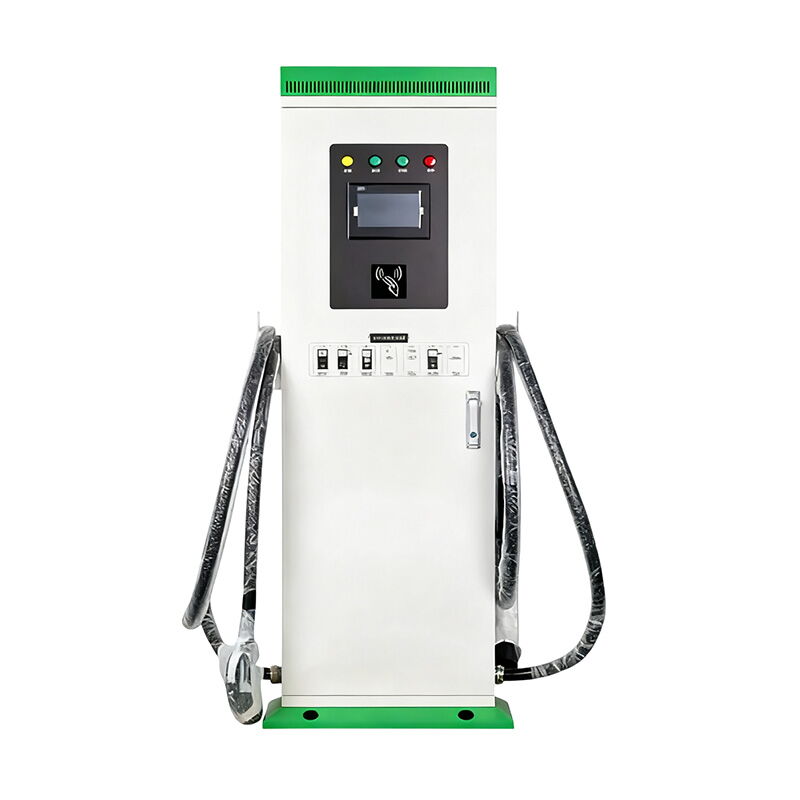

Commercial DC EV Charger, 60 kW, 200–750 V, 120 A, Dual Port

Product Name: Commercial DC EV Charger, Dual Port
Type: DC Fast Charger, Floor-Mounted
Charging Power: 60 kW
Cable Length: 5 m
Input Voltage: AC 380 V ±20%
Input Frequency: 45–65 Hz
Output Voltage: 200–750 VDC
Output Current Range: 0–120 A

Feature Design/HMI

HMI: 7 Inch LCD Color Display Touch Screen, LED Indicator
Charging Mode: Auto Full / Fixed Power / Fixed Amount / Fixed Time
Payment Method: Credit Card / App / Scan Code
Communication Interface: Ethernet / 2G / 3G / 4G (Optional)

Environmental Indicators

Operating Temperature: -25°C to +50°C
Working Humidity: 5%–95% Non-Condensing
Protection Level: IP54
Cooling Method: Forced Air Cooling
Noise Control: ≤60 dB
MTBF: 100,000 Hours

Safety Design

Executive Standard: GB/T 20234, GB/T 18487, GB/T 27930, NB/T 33008
Security Functions: Charge Gun Temperature Detection, Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Grounding Protection, Over Temperature Protection, Low Temperature Protection, Insulation Monitoring Protection, Polarity Reverse Connection Protection, Lightning Protection, Emergency Stop Protection, Leakage Protection
