Key Specifications / Features
- Model No.: DAEVC-20250928-DCEV-01
- Hits: 1
- Categories: DC EV Charger
- Tags: Pedestal EV Charger, DC EV Charger, 40 kW EV Charger
Detail Information

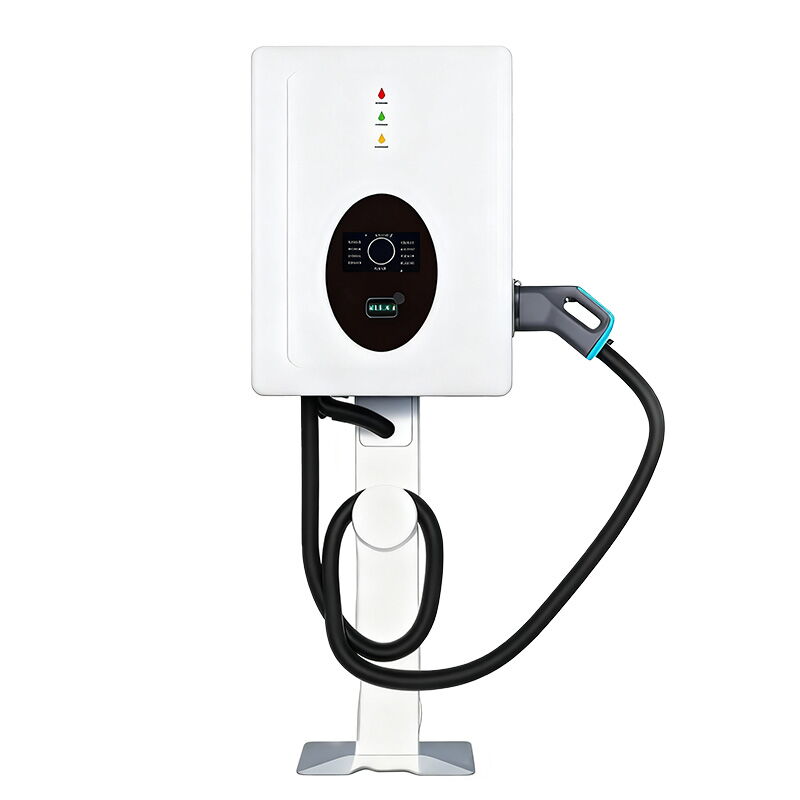

Product Name: DC EV Charging Station, Single Plug/Port
Type: DC Fast Charger, Pedestal
Rated Power: 40 kW
Power Supply: Three-Phase AC 400V ±15%
Operating Frequency: 50/60 Hz
Power Factor: ≥0.98
Rated Current: 40 A
Output Voltage Range: DC 150–1000 V
Output Current Range: 0–133 A
Max Efficiency: ≥95% (100% Loading)
Cable Length: 5 m
IP54 for Outdoor Use
User Interface
LCD Display: 10.1-inch Touch Screen
LED Indicator: Green + Yellow + Red
Start Mode & User Authentication
Credit Card Payment
Mobile Remote Operation (App)
RFID Authentication
POS
Functions & Communication
App Remote Control via WiFi / Bluetooth
LAN / 4G (Optional)
Communication Protocol: OCPP 1.6 JSON
Protections
Emergency Stop Button
Leakage Protection
Over Temperature Protection
Lightning Protection
Over Current Protection
Over Voltage Protection
Under Voltage Protection
Short Circuit Protection
Environmental Conditions
Operating Temperature: -30°C to +55°C
Humidity: 5%–95% non-condensing
Altitude: ≤2000 m
