Key Specifications / Features
The Pedestal DC EV Charger Manufacturer offers a high-performance, single-port DC fast charger designed for rapid and efficient electric vehicle charging. With a charging power of 30 kW and an output voltage range of 200–750 VDC, it supports a maximum current of 100 A, ensuring quick charging times. The charger is equipped with IP54 protection, safeguarding it against dust and water ingress, making it suitable for outdoor installations. It also features OCPP 1.6J compliance, enabling seamless integration into modern charging networks.
- Model No.: DAEVC-20250925-DCEV-03
- Hits: 4
- Categories: DC EV Charger
- Tags: DC EV Charger, Pedestal EV Charger, 30 kW EV Charger
Detail Information

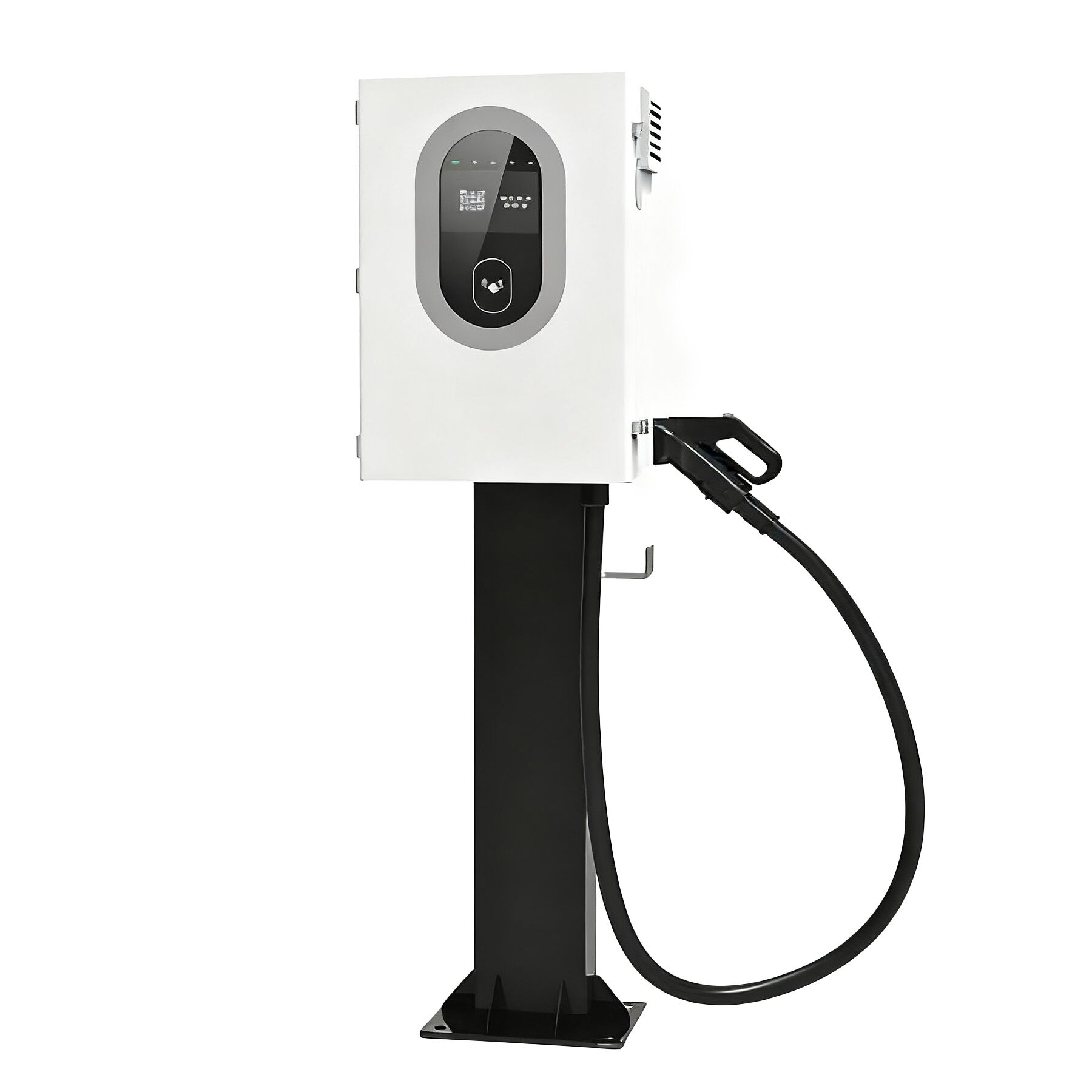

Product Name: Pedestal DC EV Charger, Single Port
Type: DC Fast Charger, Pedestal Type
Material: Sheet Metal
Charging Power: 30 kW
Output Voltage Range: 200-750 VDC
Max. Output Current: 100 A
Power Factor: ≥0.99 (50% Load or More)
Efficiency: ≥94.5%
Input Power: AC 380V ±20%, 50 Hz ±10 Hz
IP Rating: IP54
Cable Length: 5 m
Single Port Output Current Range: 0-150 A
Dimensions: 410 * 216 * 620 mm (L * W * H)
User Interface And Connectivity
Display: 7 Inch LCD Color Touch Screen, LED Indicator
Payment: Credit Card/App/Scan Code
Connectivity: Ethernet/2G/3G/4G (Optional)
Protocol: OCPP 1.6J (Optional)
Environment
Operating Temperature: -25°C to +50°C
Working Humidity: 5% to 95% Non-Condensing
Cooling: Forced-Air Cooling
Noise Control: ≤60 dB
