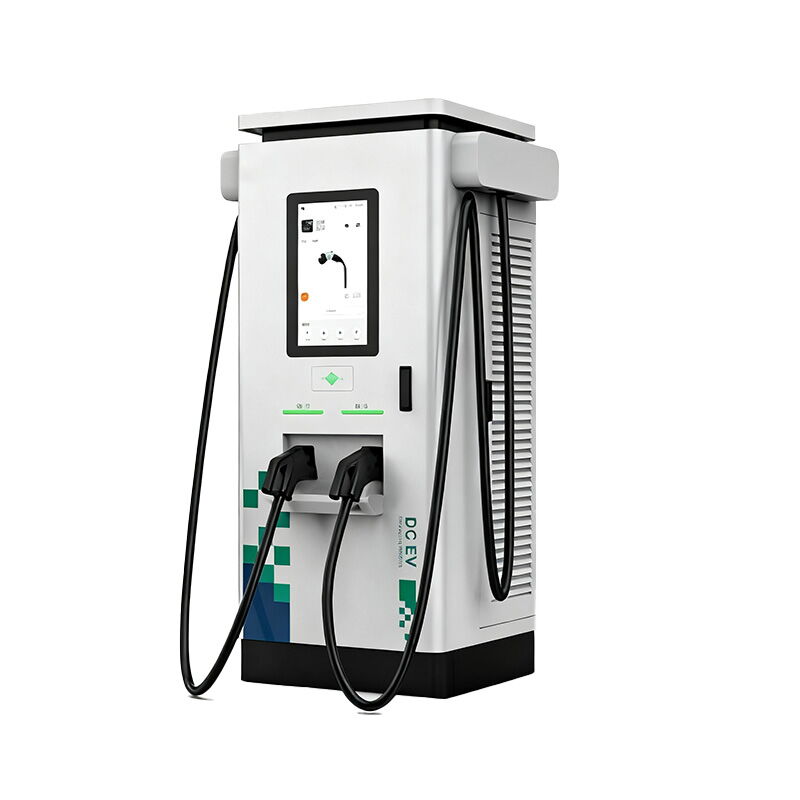

Dual Port DC EV Charger, 120 kW, 500 A, Floor-Mounted, IP55

Home Products DC EV Charger Dual Port DC EV Charger, 120 kW, 500 A, Floor-Mounted, IP55

Key Specifications / Features

The Dual Port DC EV Charger Factory offers a robust, floor-mounted DC fast charger designed for high-efficiency charging. It supports a charging power of 120 kW, with a voltage range of 150–1000 VDC and a maximum current of 500 A. The charger features dual CCS2 + CCS2 charging outlets, enabling simultaneous charging of two vehicles. Its IP55 rating ensures protection against dust and water ingress, making it suitable for outdoor use. This charger is ideal for commercial and public charging stations, providing reliable and fast charging capabilities.

Model No.: DAEVC-20250925-DCEV-02
Hits: 1
Categories: DC EV Charger
Tags: DC EV Charger, Dual Port EV Charger, 120 kW EV Charger

Request a quote

Detail Information

Product Name: Dual Port DC EV Charger
Type: DC Fast Charger, Floor-Mounted
Material: Sheet Metal
Charging Power: 120 kW
Output Voltage Range: 150-1000 VDC (CCS2 Liquid Cooling)
Max. Output Current: 500 A (CCS2 Liquid Cooling)
Power Factor: ≥0.99 (Load 100%)
Efficiency: ≥95%
Input Power: 3-Phase, 380-415 VAC, 50/60 Hz
Rated Input Current: 203 A
IP Rating: IP55
Dimensions: 800 * 800 * 1800 mm (L * W * H)

Cable & Outlets

Cable Routing: Bottom Inlet Wiring, Up Outlet Wiring
Total Length Of Cable: 5 m
Charging Outlets: Double (CCS2 + CCS2)

User Interface And Connectivity

Display: 7 Inch LCD Screen / LED Light
Payment: RFID, App
Connectivity: Ethernet/4G/WiFi
Protocol: OCPP 1.6J

Environment

Application Place: Indoor / Outdoor
Working Temperature: -30°C to +50°C
Working Humidity: 5% to 95%
Cooling: Natural/Forced-Air Cooling
