Key Specifications / Features
- Model No.: DAEVC-20250926-DCEV-01
- Hits: 0
- Categories: DC EV Charger
- Tags: 180 kW EV Charger, Dual Port EV Charger, DC EV Charger
Detail Information

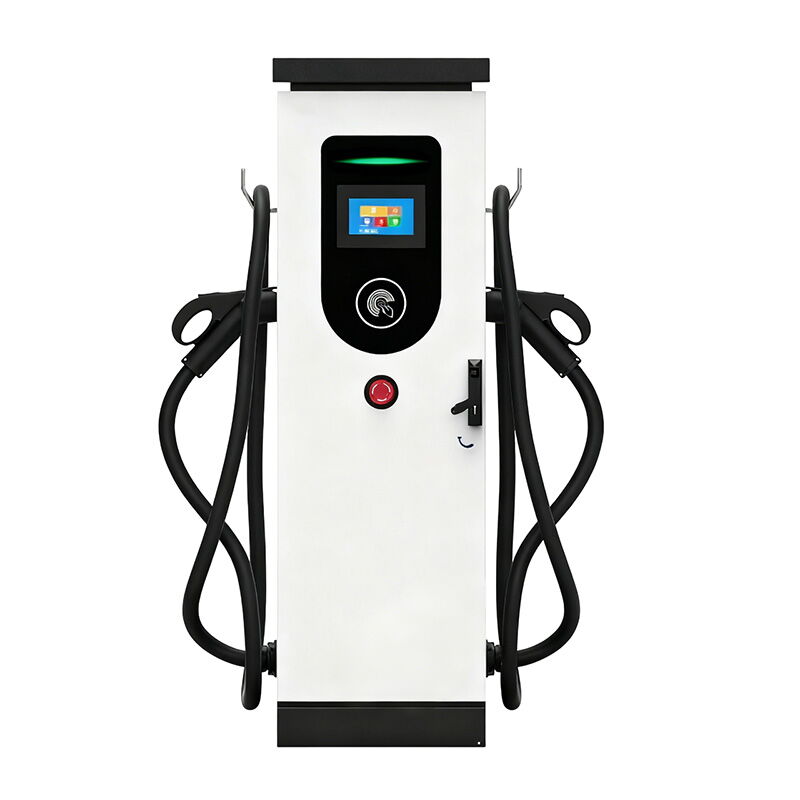

Product Name: DC EV Charging Station, Dual Port
Type: DC Fast Charger, Floor-Mounted
Charging Method: Quick Charge
Charging Power: 180 kW
Cable Length: 5 m (Customizable)
IP Rating: IP54
Display: 7 Inch LCD
Certification: CE
Start Mode: Credit Card Payment, Mobile Remote Operation, RFID Authentication, RFID Card
Dimensions: 700 * 500 * 1650 mm (L * W * H)
AC Input Specifications
Input Voltage: 400 V AC ±15%
Input Connection: L1 + L2 + L3 + N + PE
Max Input Current: 330A + 63A
Frequency: 50/60 Hz
Power Factor: >0.99 @ Full Load
DC Output Specifications
Output Voltage Range: DC 150–1000 V
Max Output Current: GB/T, CCS 250 A (Max)
Optional Connector: GB/T, CCS2, CHAdeMO
Communication
External: Bluetooth/Ethernet/4G/3G
Internal Protocol: OCPP 1.6 JSON
Environmental
Operating Temperature: -30°C to +55°C
Humidity: 5%–95% RH, Non-Condensing
Cooling Method: Fan Cooling
