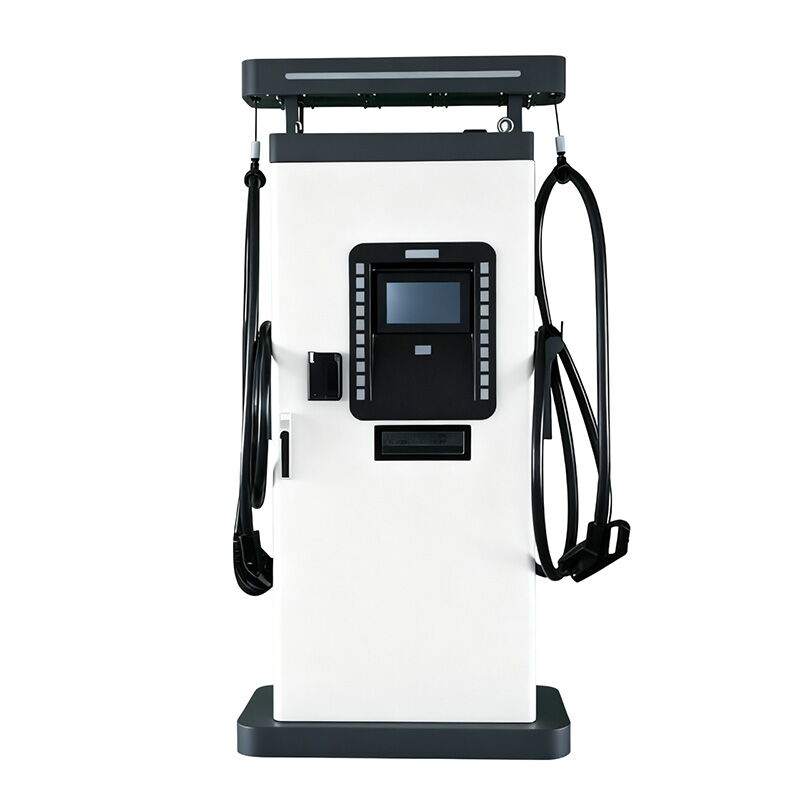

240 kW DC EV Charger, 2*250 A, 200-1000 V, Dual Port, IP55

Product Name: 240 kW DC EV Charger, Dual Port
Type: DC Fast Charger, Floor-Mounted
Rated Power: 240 kW
Output Voltage Range: 200-1000 VDC
Output Current (Max): 2×250 A @ below 480 V (Dual Connector)
Rated Input Current: 373 A
Input Connection: 3P + N + PE (L1, L2, L3, N, PE), 50/60 Hz
Input Voltage: 400 ±10% VAC
Power Factor: ≥0.99
Peak Efficiency: ≥96%

User Interface & Authentication

HMI: 10.1-inch Touch Screen
Charging Authentication: RFID, QR Code, Plug and Charge (via EVCCID), NFC, Credit Card (via optional VPOS)
LED Status Indicator:
Green: Standby
Red: Charging in progress
Orange: Error

Communication & Network

Network Connection: 4G, RJ45
Protocol: OCPP 1.6

Charging Port & Cable

Charging Port: CCS Combo 2
Cable Length: 4.5 m (customizable)

Environmental Conditions

Operating Temperature: -30°C to +60°C (derating above 50°C)
IP Rating: IP55

Protection Features: Over Voltage, Under Voltage, Leakage Current, Over Current, Over Temperature, Short Circuit, Reverse Polarity, Surge Protection
