Key Specifications / Features

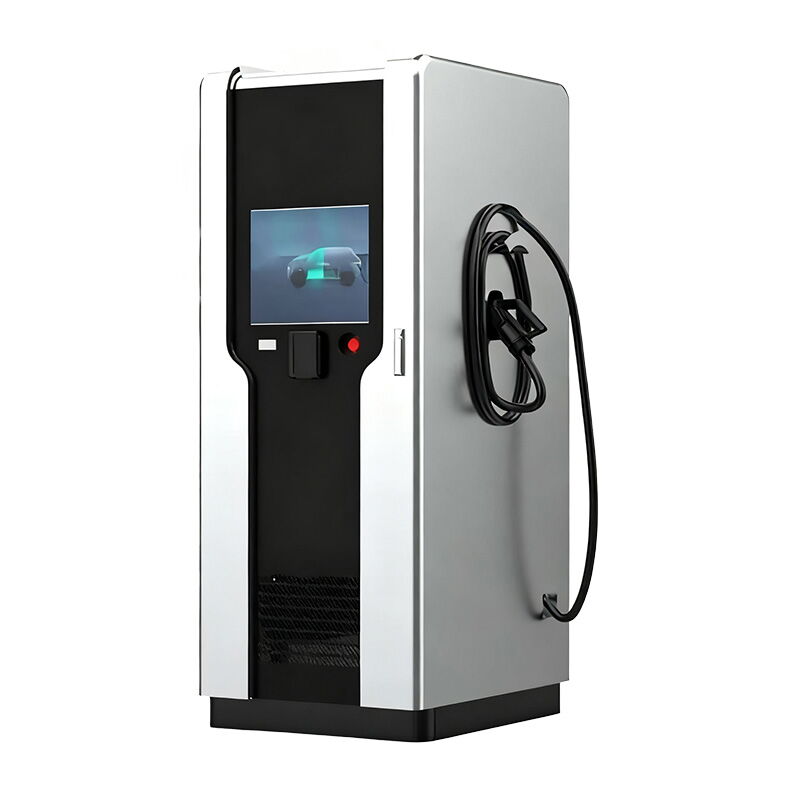

The Battery-integrated DC EV Charger is a high-performance, floor-mounted charging solution designed for rapid electric vehicle charging. It features a single port with a charging power of 60 kW or 80 kW, operating within a voltage range of 300–1000 VDC and a current capacity of 200 A. The integrated 42.5 kWh battery enhances efficiency and reliability. This charger is ideal for commercial and public charging stations, offering fast and dependable charging capabilities.
- Model No.: DAEVC-20250925-DCEV-01
- Hits: 14
- Categories: DC EV Charger
- Tags: Battery-integrated EV Charger, DC EV Charger, 60 kW EV Charger
Detail Information
Product Name: Battery-integrated EV Charger, Single Port
Type: DC Fast Charger, Floor-Mounted
Material: Industrial Grade Alloy
Charging Power: 60 kW/80 kW (30/40 kW + 30/40 kW)
Output Voltage Range: 300 – 1000 VDC
Max. Output Current: 200 A (CCS2 Continuous)
Efficiency: ≥96.5%
Input Power: 3-Phase, 400 VAC ±15%, 50 Hz ±1 Hz
Rated Input Current: 61 A
IP Rating: IP55
Dimensions: 880 * 1160 * 2100 Mm (W * D * H)
Energy Storage System
Battery Capacity: 42.5 Kwh
Usable Energy: 40.4 Kwh
Max. Recharge Power: 20 Kw
Cycle Life: >6000 Cycles (25℃, 60% Eol)
Battery Efficiency: ≥94.5%
Cooling: Air Cooled
User Interface And Connectivity
Display: 19 Inch Screen
Payment: RFID, Credit Card
Connectivity: GSM, LTE, LAN, WLAN
Protocol: OCPP 1.6J
