7.4 kW AC EV Charger, 220–240 V, Max 32 A, Type 2 Connector

Home Products AC EV Charger 7.4 kW AC EV Charger, 220–240 V, Max 32 A, Type 2 Connector

Key Specifications / Features

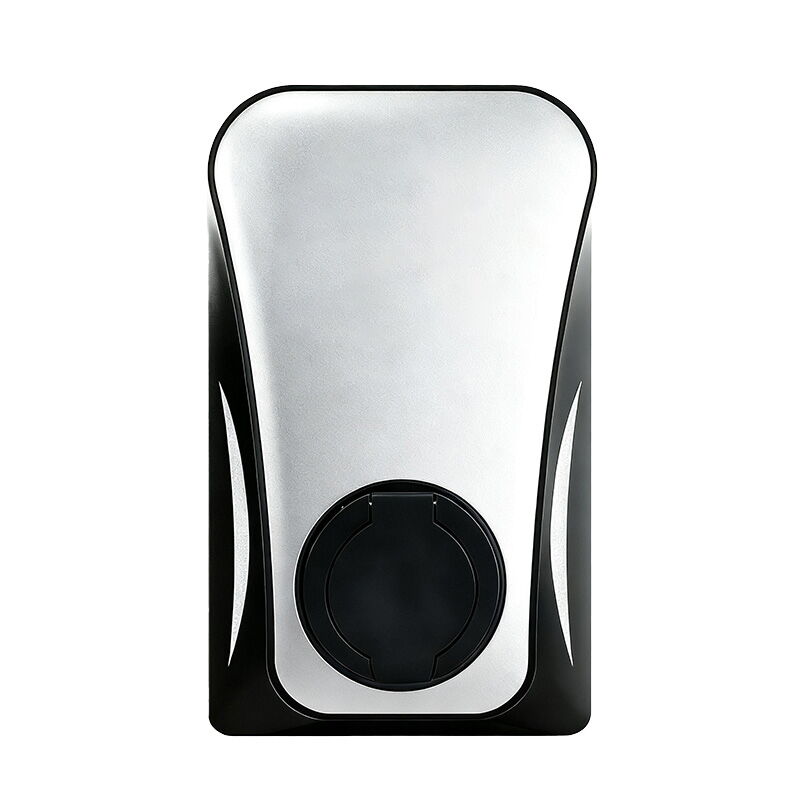

This 7.4 kW AC EV charger is a wall-mounted slow charging station designed for convenient and efficient electric vehicle charging. It features a Type 2 connector and operates on an AC voltage range of 220–240 V, with a maximum current of 32 A. The charger is built with IP54 protection to ensure durability and reliability in various environments. Suitable for OEM applications, it offers a reliable charging solution for electric vehicles.

Model No.: DAEVC-20250928-ACEV-01
Hits: 0
Categories: AC EV Charger
Tags: Wall-Mounted EV Charger, AC EV Charger, 7.4 kW EV Charger

Request a quote

Detail Information

Product Name: 7.4 kW AC EV Charger
Type: Slow EV Charging Station, Wall-Mounted
Rated Power: 7.4 kW
Power Supply: 1P+N+PE
Rated Voltage: AC 220–240 V, 50/60Hz
Rated Current: Max 32 A (adjustable 6–32 A)
Output Voltage: AC 220–240 V, 50/60Hz
Charger Socket/Connector: Type 2
Material: ABS+PC, Flammability Rating V-0
Indicator Light: Three-Colour LED
Ingress Protection: IP54 (Enclosure: IP65, Connector: IP54)
Operating Temperature: -25°C to +50°C
Humidity: 3%–95%
Certification: CE, UKCA
Certification Standard: EN 61851, EN 62196
Standby Power Consumption: <10 W

Protection

Overcurrent protection (Max 32 A, recommended 36 A)
Residual current protection (AC Type A 30mA, DC 6mA)
Over/Under voltage protection
Over temperature protection
PEN fault protection
